The quint-it wall system is an innovative full glass system, where vertical posts are not necessary. Clearness and understatement are fortified through the anthracite colored glass panels. The patented products are an expression of a responsible, environmental handling with high-quality materials and innovative techniques. The profiles in the revolving- and sliding door are the same size as the profiles in the frames, and they are flush to all glass surfaces. They have been developed according to the principle of the golden ratio.

|_  Glass: clear, opaque

|_  Doors: normal door height, full room height

|_  Revolving door, sliding door

|_  Acoustics

|_  Presentation

|_  Sustainable, environmental

|_  Barrier-free, antimicrobial (AM)

|_  Electrical installations possible

The system adjusts to the design requirements from architecture and interior design and is a tool for the ideas of architects. Room acoustical solutions with individually printable surfaces offer an infinite diversity of variation opportunities.

|_  For industry, contract business, and private homes

|_  With barrier-free, handicap accessible full glass doors

|_  With anti-panic functions for safety technology relevant areas

|_  Acoustically effective surfaces, which can be integrated in the wall

|_  Prepared for E-bus systems on operation- and safety relevant areas

|_  Powder coated with antimicrobial (AM) properties for sanitary areas

|_  Recyclable and without any PVC and softeners (basic material aluminum)

quint-it THE DETAILS.

|_  Shock- and scratch-resistant, easy to maintain, antimicrobial, powder coated anthracite aluminum profile

|_  10 mm, 12 mm – 17,5 mm glass possible. Sound absorption with 16,76 mm VSG glass 42 dB in glass

|_  Height adjustment in the system +/- 9 mm

|_  Connections to wall, floor, ceiling, T-joint possible, inside and outside corners

|_  The profiles of the revolving- and sliding door are dimensionally co-ordinated

|_  All glass levels are flush to the surface: profiles, lock case, door frame, hinges, door closer

|_  Revolving door with a flush installed anthracite lock case

|_  Glass thickness for glass doors 10mm, 12mm - 17,5mm ESG / VSG

|_  The revolving door can as an option be placed in glass or in the wall

|_  Options: bar handle, door locker, panic handle, magnetic hold, bottom seal

|_  Different electrical solutions

|_  Signs in matching design

|_  Sliding door with anthracite colored bar handle, optional with closing mechanism

|_  Glass thickness for glass doors 10mm

|_  The sliding door can as an option be placed in glass or on the wall

|_  Option: softstop. The sliding door brakes softly, and draws itself back to the zero-position

|_  The sliding door runs on steel balls, revisable

|_  The glass can individually be provided with foil or print

|_  Acoustic fabric absorbers with aluminium frames and recyclable acoustic fleece

|_  Age-resistant polyester fibre

|_  No airborne fibres, formaldehyde-free, no chemical binders

|_  Non-allergenic, does not contain outgassing substances

|_  Flame retardant B - s1,d0 in accordance with EN 13501

|_  Non-combustible A2 - s1,d0 in accordance with DIN EN 13501

|_  Sound absorption class a in accordance with DIN EN ISO 11654

|_  Fabric cover washable at up to 30 degrees Celsius

|_  Replaceable fabric cover can be imprinted individually

|_  Available in customised sizes

|_  Absorber systems for ceiling and wall mounting

|_  Reversible glass fittings with adhesive mounting points

|_  Powder-coated metal absorbers in RAL and NCS colours

|_  100% recyclable

|_  Original structure can be rendered to absorbers’ surface for listed buildings

|_  Can be fitted with LED illumination

THE quint-it DEUTSCHLAND GMBH.

quint-it stands for the thrive for perfection and the joy of good design. The founders of the company Oliver Betz and Ralf Hausner developed the quint-it wall system in co-operation with inventor of the system, Hubert Elmer. Elmer is from Tyrol in Austria, where he also lives. He has made a name for himself in the international glass architecture, and he has won several renowned prizes, such as the red dot for good design.

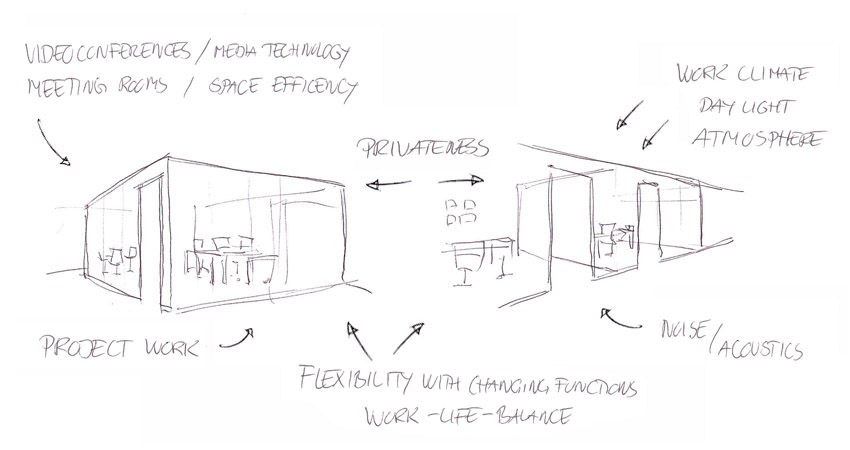

The idea behind quint-it is to create structure in the room. Current trend studies show us that there is an increasing need for multi-functional and flexible rooms that can serve more purposes. quint-it offers style and value with it´s clear lines and the consistent flushed design.

Less is more.

The profiles let room transitions be the creating element of the architecture in the room. They are orientated to the need for space, acoustic, light and the efficient use of the room. The wall system gives individual room for withdrawal, transparency and openness in the office or private home.

PROJECT BRAINLAB, MÜNCHEN

Two reflections on Privacy

1. Temporary acoustic and optical shielding enable concentrated work.

2. The room also gets a homely character trough the curtains.

PROJECT ALTES HAFENAMT, COLOGNE

Two reflections on the modern office

1. The altes Hafenamt, the old port authority building in Cologne was built in 1889, and belongs to the most beautiful buildings in the city, has been rebuilt and renovated. The row of communication open offices in the adjoining new construction goes around the glazed atrium, and creates an unique setting for single- and team offices, and for open space areas. The common conference rooms are in the ground floor. Space for withdrawal, but also the opportunity for exchange with guests and costumers has been created.

2. Glazed sliding doors invite to open communication inside the building. In this way the employees become a part of this very special ”market place” atmosphere, completely in accordance with the modern office.

PROJECT DR. WEBER, DARMSTADT

Two reflections on contemporary design

1. The interaction between elements and functions creates a clear modern architecture.

2. The powder-coated aluminum profile is easy to clean and antimicrobial. Large glass surfaces and the profile are a clear statement to transparency and cleanliness.

PROJECT VR BANK, EDENKOBEN

Four reflections on acoustic, presentation and daylight

1. With the full glass system the open office gets structure and space for different working situations: the single working place, the team working place and the meeting- and presentations room.

2. With full-surface fabric cover, the room gets acoustically effective areas. So the opaque wall parts get the function as absorber, presentation area and provisions on views for confident conversations – all at the same time.

3. The fabric cover is printable, and so it is not only capable to be used as a reflecting surface, but also for emotional, eye-catching presentations.

4. The full glass walls provide light, transparent rooms, where also daylight gets through walls that turn against windows.

PROJECT OPEN OFFICE IN OFFENBACH

Tree reflections on traffic ways, work- and function areas and efficient use of space

1. Today flexibility in the use of office areas is a cruising criterion for space and economic efficiency. During a working day, an office area can be used in many different ways: as a temporary workplace, as a meeting point or as a conference room.

2. Through a very well thought out planning on beforehand, with sufficient space for the different usage requirements, huge future costs for individual building adjustments can be saved.

3. The sliding doors enable barrier-free running surfaces, and can be integrated in the full glass -space division so that it look like as they are freely floating.

PROJECT MOSER HOLDING, INNSBRUCK

Two reflections to high-value design of representative office space

1. Generous areas of glass bring daylight and openness to the room.

2. Anthracite provides structure to the room and makes colored and wooden surfaces appear clearer.

PROJECT EDENRED, WIESBADEN

Tree reflections to the planning of large open rooms

1. Large glass walls can be decorated through foiling. Rooms with changing functions can so be divided and still have a high flexibility of use. Individual space for withdrawal, transparency and openness.

2. The revolving doors can as an option also be supplied an individual sign system.

3. The window frames on the outside facade of the building harmonies with the space division system inside the building.

OTHER PROJECTS

|_  Allianz, Höchstadt

|_  Allianz, Berlin

|_  Samsung, Schwalbach

|_  Bosch, Ansbach

|_  E.ON, Kirchlegern

|_  Liga Nord, Hamburg

|_  Santaverde, Hamburg

|_  Prodedes i-d, Bremen / Lemwerder

|_  Alte Fahrkartendruckerei, Mainz

|_  WSS Schlechtendahl, Heiligenhaus

|_  Mattex, Frankfurt

|_  PSP Architekten, Hamburg

|_  Beck, Essen

|_  Dr. Weber, Darmstadt

|_  Dr. Schmitt, Hochheim

|_  Drs. Bamberger+Nolte, Marburg

|_  Finanz, Berlin

|_  Gymnasium Romäusring, Villingen-Schwenningen

|_  Teubert Maschinenbau, Blumberg

|_  Montgelas Park, München

|_  Vertical Vision, Köln

|_  EBT, Erfurt

|_  Austria Alpin, Fulpmes

|_  Kpmg, Linz

Contact us. We will be pleased to help you - From the technical preparation, right up to delivery.

You can also order the following documents and data:

|_  Section drawings (pdf, dwg)

|_  Framework conditions for the installation of partition walls / construction conditions (pdf)

|_  Assembly instructions (pdf)

|_  Texts for invitation to tender / system description (doc)

|_  Product presentations (jpg)

|_  System presentation (pdf, ppt)

Please send us an e-mail or call us. We look forward to hearing from you.
Here are our quint-it contact information.

Project handling with experience.

That is what we and our partners are standing for. In co-operation with the partners, individual solutions according to the requirements of the customer or building owner are designed and put into practice. This, of course, with the necessary flexibility, under consideration of the local conditions of the particular structure, and the planned functions.

To find a partner to turn to, please contact us:

UNITED KINGDOM

M3 DESIGN DEVELOPMENT LTD

Chris Cattrall | No. 1 The Old Power Station | 121 Mortlake High St. | London | SW14 8SN
PHONE: +44 (0)208 487 2770
Chris.cattrall@m3ltd.com   |   www.m3ltd.com

INTERNATIONAL

quint-it

OLIVER BETZ
INFO@quint-it.DE | MOBILE: +49(0)174-8426242 | PHONE: +49(0)6147-201785 | FAX: +49(0)6147-201786

ADMINISTRATION:
quint-it DEUTSCHLAND GMBH | ODERSTRASSE 4 | 65468 TREBUR | GERMANY

We look forward to hearing from you.

GERMANY AND INTERNATIONAL

OLIVER BETZ
INFO@quint-it.DE | MOBILE: +49(0)174-8426242 | PHONE: +49(0)6147-201785 | FAX: +49(0)6147-201786

ADMINISTRATION:
quint-it DEUTSCHLAND GMBH | ODERSTRASSE 4 | 65468 TREBUR | GERMANY

RALF HAUSNER
INFO@quint-it.DE | MOBILE: +49(0)173-1561437 | PHONE: +49(0)7721-6809535 | FAX: +49(0)7721-6809537

PRODUCTION:
quint-it DEUTSCHLAND GMBH | AGVS INDUSTRIEPARK, BAUTEIL 12.2 EG
GOLDENBÜHLSTRASSE 14 | 78048 VILLINGEN-SCHWENNINGEN | GERMANY

WWW.quint-it.DE   |   ANFAHRT

AUSTRIA

OFFICE@quint-it.COM | PHONE: +43 512 279 297 |Fax: +43 512 279 297 97

ADMINISTRATION:
quint-it GMBH |HALLERSTR. 43 |6020 INNSBRUCK | AUSTRIA

PRODUCTION:
quint-it GMBH |FERDINAND-WEYRER-STRASSE 7 |6020 INNSBRUCK | AUSTRIA

ARCHITECT@WORK STUTTGART

On December, 3rd and 4th quint-it has exhibited at the ARCHITECT@WORK. Exhibitors focus on innovative products, materials, applications and services that are presented for approval to a judging panel of architects and interior designers. This judging panel assesses the innovative nature each product presented, the guarantee that a visit to ARCHITECT@WORK was interesting.

ARCHITEKTURORT COLOGNE

On October, 23rd an event took place in the altes Hafenamt at the Rheinauhafen with MICHAEL ZIMMERMANN UND CO., quint-it, facili//con, m3 Raumsysteme, Müller Manufaktur and THE AGENTUR. 120 invited guests, mainly professionals and architects, had an amazing and inspiring evening in an exclusive location.
